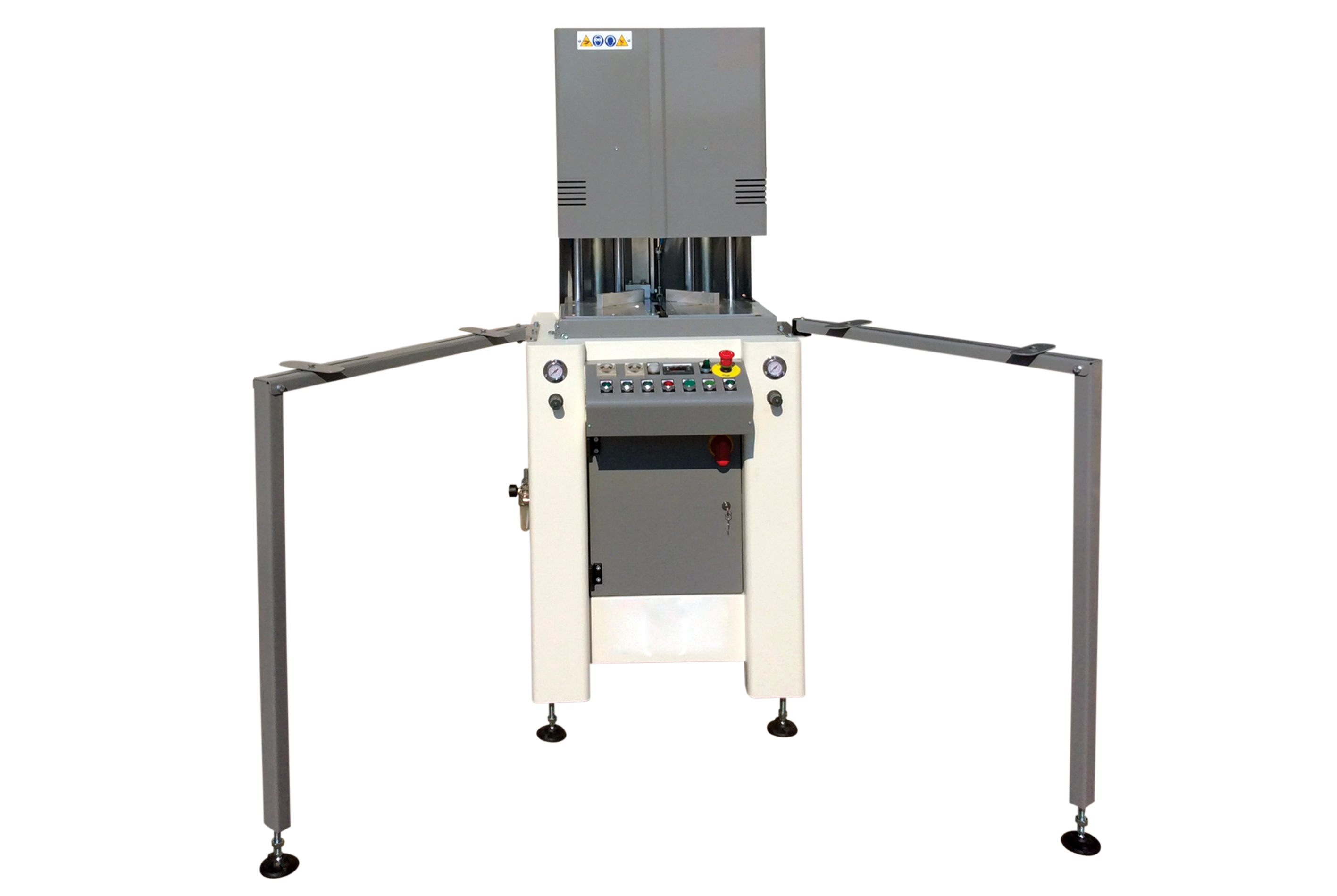

*Click the picture to enlarge.

Watch Video

Download Brochure


  • 90° welding and capable of welding angles from 30° to 180°.
  • Heated seal limitation knives kit for a welding seam of 0,2 mm.
  • Total meltdown length 3 mm (6mm total)
  • Automatic temperature control of the heater plate.
  • Automatic temperature control of welding seam limitation knives.
  • Adjustable control of welding cycle
  • Adjustable control of cooling cycle
  • Integral protection of working area, fusion plate and clamping cylinders.
  • Working cycle and other functions controlled by a PLC and a limit switch.
  • Profile supports for quick change-over of fixtures.

Technical Data:

  • Maximum profile height is 200 mm
  • Maximum profile width is 264 mm
  • Welding of variable angles from 30° to 180°
  • Quick fixture changing
  • Spew limiting knives adjustable between 0.2 (for wood-like profiles) and 2 mm (for white profile)
  • The temperature can be adjusted between 0-350 ° C with an electronic thermostat
  • 220V, Single Phase, 60Hz

Components Supplied:

  • Profile supporting arms.
  • Teflon sheet
  • Service keys
