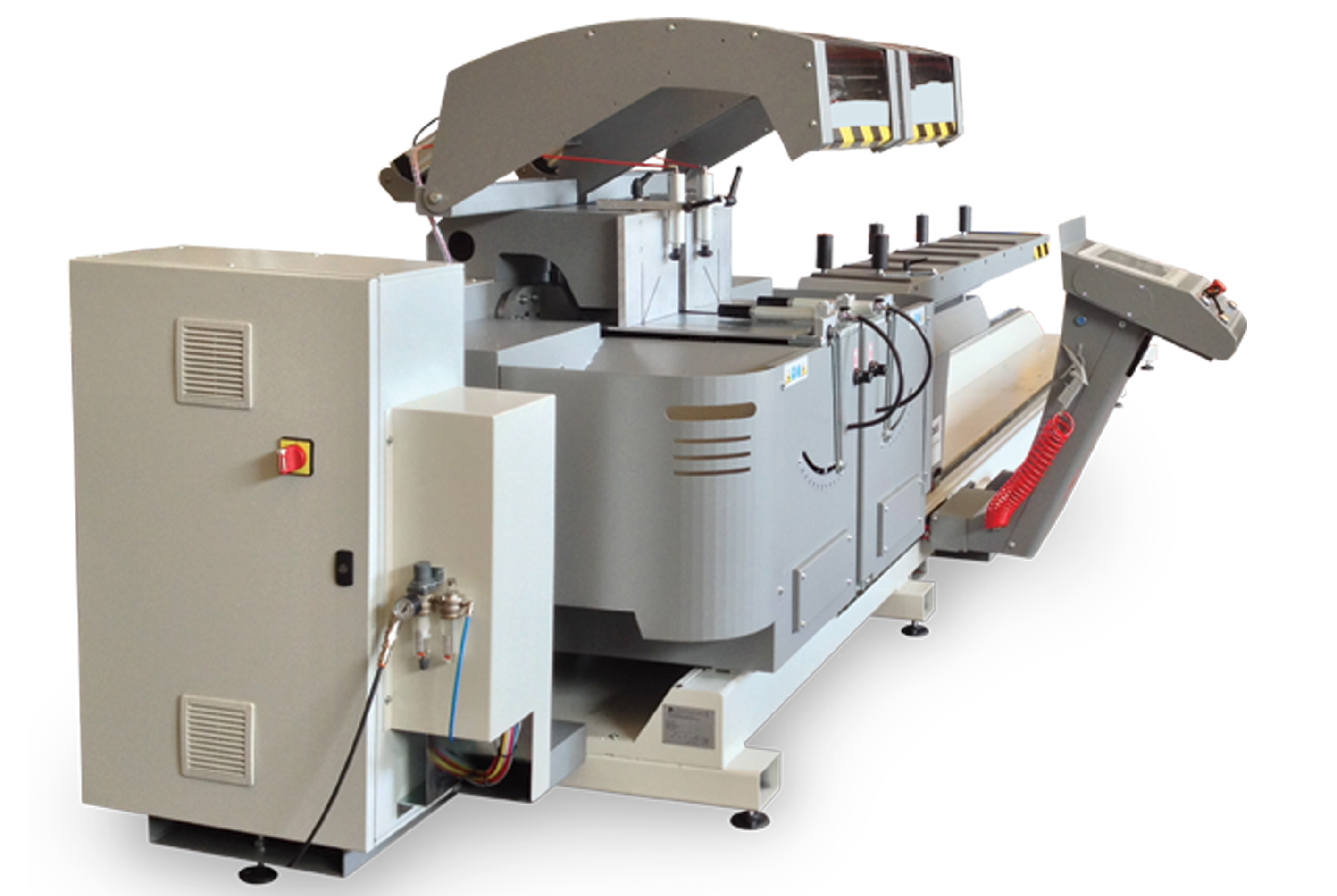

DUCM500 DOUBLE MITRE UPCUT SAW

The DUCM500 double upcut miter saw with raising blades is designed for precision miter cuts. With a fixed unit on the left side and motorized movable unit on the right side and a tilting range from 90° to 45°, the unit delivers unsurpassed versatility. Equipped with double acting vertical clamps, full protection of the saw blades, movable side support of 2.5m (8 ft), pneumatic spray mist lubrication and complete with a 2 TCT Saw Blades of Ø500 mm. and (2) 4 Hp motors, this unit is fully equipped for your production requirements.

  • Upward blade rising
  • Blade speed 2800 rpm
  • Blade tilting from 90° to 45° inwards
  • Intermediate angles obtained through mechanical stops
  • Mobile carriage movement through brushless motor
  • Max mobile carriage speed 20 m/min
  • Hydro Pneumatic adjustable blades rising
  • 2.5 m (8‘) mobile head conveyor
  • Min cutting length between the two heads: 420 mm (16.5") (with heads at 90°)
  • Max cutting length between the two heads: 4850 mm (15‘ 10") (with heads at 90°)

Equipped with electronic positioner able to:

  • TS7002 Windows 10 control
  • 3 HP 2.2 kW three phase motors
  • Manage single cuts
  • Store up to 99 profile codes and their values
  • Cutting list capabilities
  • Capable of producing over length cuts
  • Capable of producing under minimum cuts

Components Supplied

  • No. 2 Ø500 diameter blades
  • Spray mist lubrication

Options

  • Intermediate profile support
  • Micro drop lubrication with pure oil
  • Extra Ø500mm Blade
  • Cutting oil, 20 Litre
  • Label printer
  • Fixed head conveyor (2.5 Meters) (8‘)
  • Motorized chip conveyor
